Hobbywing QUICRUN 10BL120 Brushless ESC 1/10 120A Sensored 30125000

Hobbywing QUICRUN 10BL120 Brushless ESC 1/10 120A Sensored 30125000
Hobbywing QUICRUN 10BL120 Brushless ESC 1/10 120A Sensored #30125000 in factory sealed retail package.Ships 1 business day after payment.Free 30 day returns with 20% restocking fee for opened retail package.Details:For 1/10, 1/12 Car general use.This ESC is NOT designed for a racing applicationFeatures:- High performance but low price, users can own this reliable ESC at an affordable cost.- Compact size, suitable for various car chassis- Auto identification system can recognize sensored / sensorless brushless motors automatically.- Core competition program for excellent control feels & multiple programmable items.- 8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential- Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.- 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit for different kinds of cars, tires and tracks.- Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor Lock-up protection.- One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.- Compatible with the optional device - the portable Digital LED Program Card, especially convenient for outdoor use. (sold separately)Specs:- Cont. / Peak Current: 120A / 760A- Applicable: 1/10th Touring Car/Buggy/F1/Drift Car, and etc.- Motor Limit (See Notes Below)- 4-6 cells NiMH / 2S LiPo: ≥3.5T (1/10 On-road), ≥4.5T (1/10 Off-road)- 8-9 cells NiMH / 3S LiPo: ≥8.5T (1/10 On-road), ≥10.5T (1/10 Off-road)- Battery: 4-9 cells NiMH, 2-3S LiPo (See Caution Below)- BEC Output: 6V@3A, Linear Mode- Cooling Fan: Powered by the battery- Dimensions: 43 x 36 x 33mm (w/ Fan)- Weight: 105g (w/ Wires & Fan)CAUTION:- Battery Selection ** Important notes **1. Minimum 70C suggested, lower C rating may be okay, however it will not provide the best experience.2. Large area power plugs must be used. The surface area of your plugs, must be "larger" than the wires installed or you will very likely have problems. TRX, "T Plug", EC plugs, and "Deans" are not suggested.Notes:- “T” indicates the limit value of motor turns when the ESC timing is set to 0 degree. The larger the timing, the more turns the motor needs. Please pay close attention to temperatures of the motor and the ESC to avoid damage.
Hobbywing QUICRUN 10BL120 Brushless ESC 1/10 120A Sensored 30125000

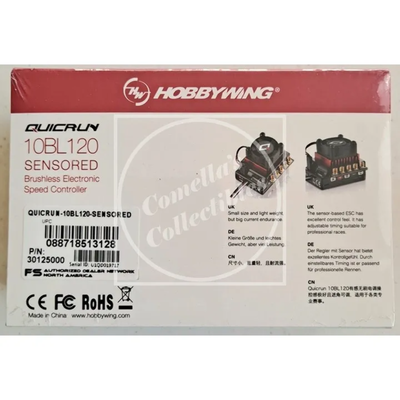

Hobbywing QUICRUN 10BL120 Brushless ESC 1/10 120A Sensored #30125000 in factory sealed retail package.
Ships 1 business day after payment.
Free 30 day returns with 20% restocking fee for opened retail package. Details:
For 1/10, 1/12 Car general use.
This ESC is NOT designed for a racing application Features:
- High performance but low price, users can own this reliable ESC at an affordable cost.
- Compact size, suitable for various car chassis
- Auto identification system can recognize sensored / sensorless brushless motors automatically.
- Core competition program for excellent control feels & multiple programmable items.
- 8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential
- Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
- 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit for different kinds of cars, tires and tracks.
- Multiple protections: Low voltage cut-off protection for Lipo or NiMH battery / Over-heat protection / Throttle signal loss protection / Motor Lock-up protection.
- One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional device - the portable Digital LED Program Card, especially convenient for outdoor use. (sold separately) Specs:
- Cont. / Peak Current: 120A / 760A
- Applicable: 1/10th Touring Car/Buggy/F1/Drift Car, and etc.
- Motor Limit (See Notes Below)
- 4-6 cells NiMH / 2S LiPo: ≥3.5T (1/10 On-road), ≥4.5T (1/10 Off-road)
- 8-9 cells NiMH / 3S LiPo: ≥8.5T (1/10 On-road), ≥10.5T (1/10 Off-road)
- Battery: 4-9 cells NiMH, 2-3S LiPo (See Caution Below)
- BEC Output: 6V@3A, Linear Mode
- Cooling Fan: Powered by the battery
- Dimensions: 43 x 36 x 33mm (w/ Fan)
- Weight: 105g (w/ Wires & Fan) CAUTION:
- Battery Selection ** Important notes **
1. Minimum 70C suggested, lower C rating may be okay, however it will not provide the best experience.
2. Large area power plugs must be uséd. The surface area of your plugs, must be "larger" than the wires installed or you will very likely have problems. TRX, "T Plug", EC plugs, and "Deans" are not suggested. Notes:
- “T” indicates the limit value of motor turns when the ESC timing is set to 0 degree. The larger the timing, the more turns the motor needs. Please pay close attention to temperatures of the motor and the ESC to avoid damage.
×
×
×
×
×
