SC8 120A 3668 2400KV Brushless ESC Motor Combo Fits Arrma 1/10 BLX Truck

This is WP SC8 RTR 120A And 3668 2400KV Sensorless Brushless Motor ESC Combo Program Card ( Program Card With Scratch Or Dent But Works Normal )

This Combo Handle 2-4S lIPO .

This Combo Made By Hobbywing Factory But Is RTR Version ESC , Does Not Shows Hobbywing Logo On The ESC , And Without Theirs Warranty , 60 Days Warranty By Our Ebay Store .

Motor Shaft 5mm , Motor Length Around 69mm Long , Please Make Sure Your Pinion Gear Is 5mm Bore And Your Vehicle Fits 69mm Long Motor .

This Combo Is New , With Dean Plug ( T Plug ) And 4mm Connectors .

This System Run Total 14.8V Lipo Battery Max .

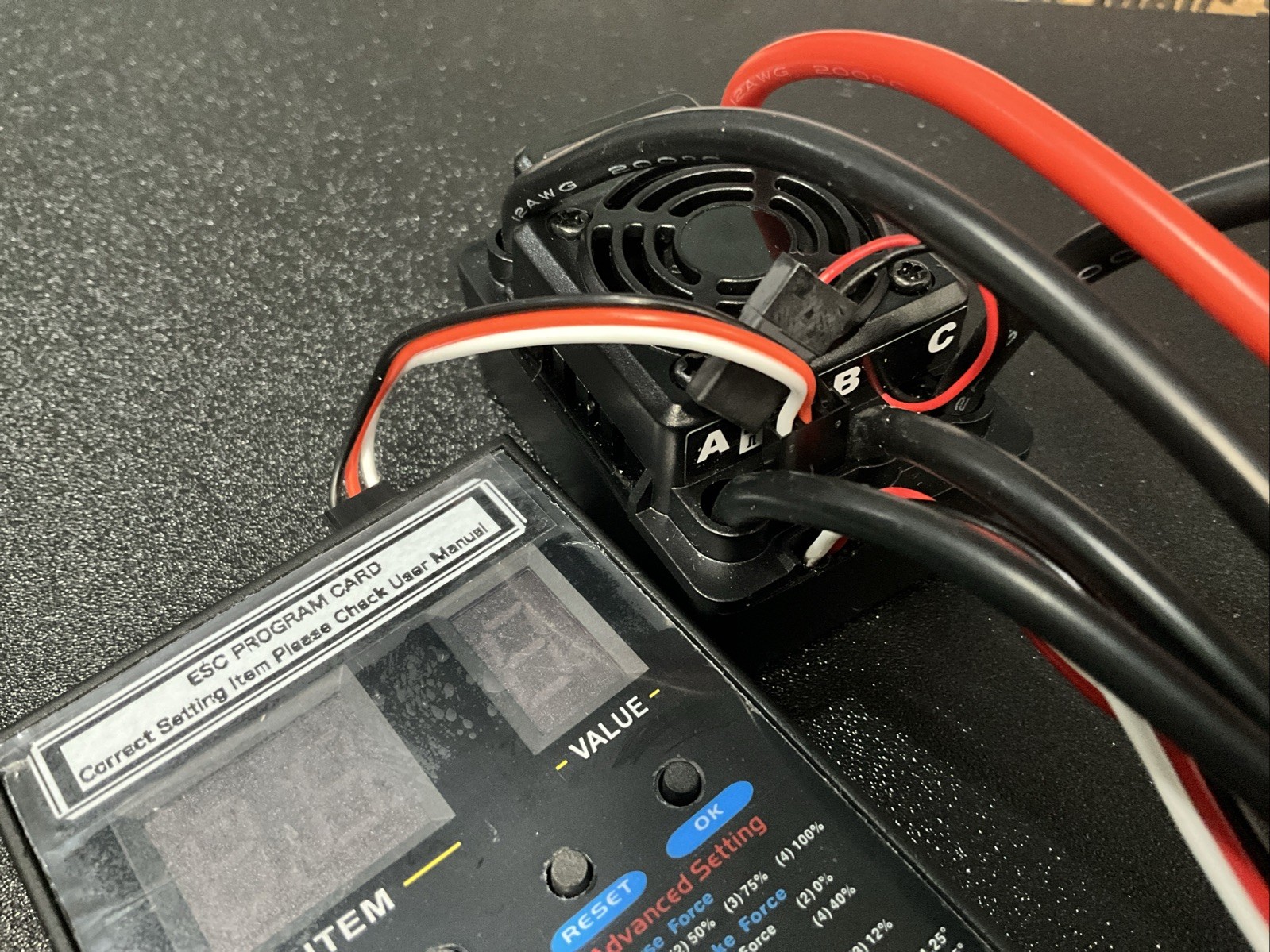

Program Card Include , Works With This RTR Version ESC But Is NOT Made By Hobbywing Factory ( Aftermarket Program Card )

ESC Specs:

Cont./Burst Current : 120A/760A

Motor Limit: 2S ≤ 6000KV 3S LiPo: KV ≤ 4000KV 4s LiPO: KV ≤ 2600KV/ 3000KV Max For 36mm Size

Resistance: .0007 ohm

Battery: 2-4s LiPo

BEC Output: 6V/3A, Switch mode

Programming Port: FAN / PRG Port

Size: 59.3mm x 38.4mm x 33.6mm

Motor Specs :

Type: 4 Pole Sensorless

KV : 2400KV

Dimeter: 36mm X 68.8mm

Shaft : 5MM

Battery : 2-4S
