Hobbywing Skywalker 20A 30A 40A 50A 60A ，80A ESC 2-6s BEC Speed

20 Amp

• Model: Skywalker-20A
• Continuous Current: 20A
• Burst Current (>10s): 25A
• BEC Mode: Linear
• BEC Output: 5V2A
• BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
• Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
• Net Weight: 19g
• Dimension (L x W x H): 42 x 25 x 8mm
• Cable length: 25cm
• Package size: 12.5 * 11 * 2.5cm

30 Amp

• Constant Current: 30A
• Peak Current:40A(10s)
• Voltage: 2-3S lixx
• BEC: Yes
• BEC Output: 5V/2A
• Color: black
• Programmable:Yes
• Size: 70*25*8mm (not including cable length)
• Net Weight:38g

40 Amp

• Model: Skywalker-40A
• Continuous Current: 40A
• Burst Current (>10s): 55A
• BEC Mode: Linear
• BEC Output: 5V2A
• BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)
• Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)
• Net Weight: 35g
• Dimension (L x W x H): 68 x 25 x 8mm

50 Amp

• Continuous output: 50A
• Burst current: 60A@10S
• Power input: 2-4S Lixx/5-12S Nixx
• 5V/3A BEC output, switch mode
• Refresh rate: 50Hz-432Hz
• Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min
• Dimension: 68*25*12mm
• Weight: 43g

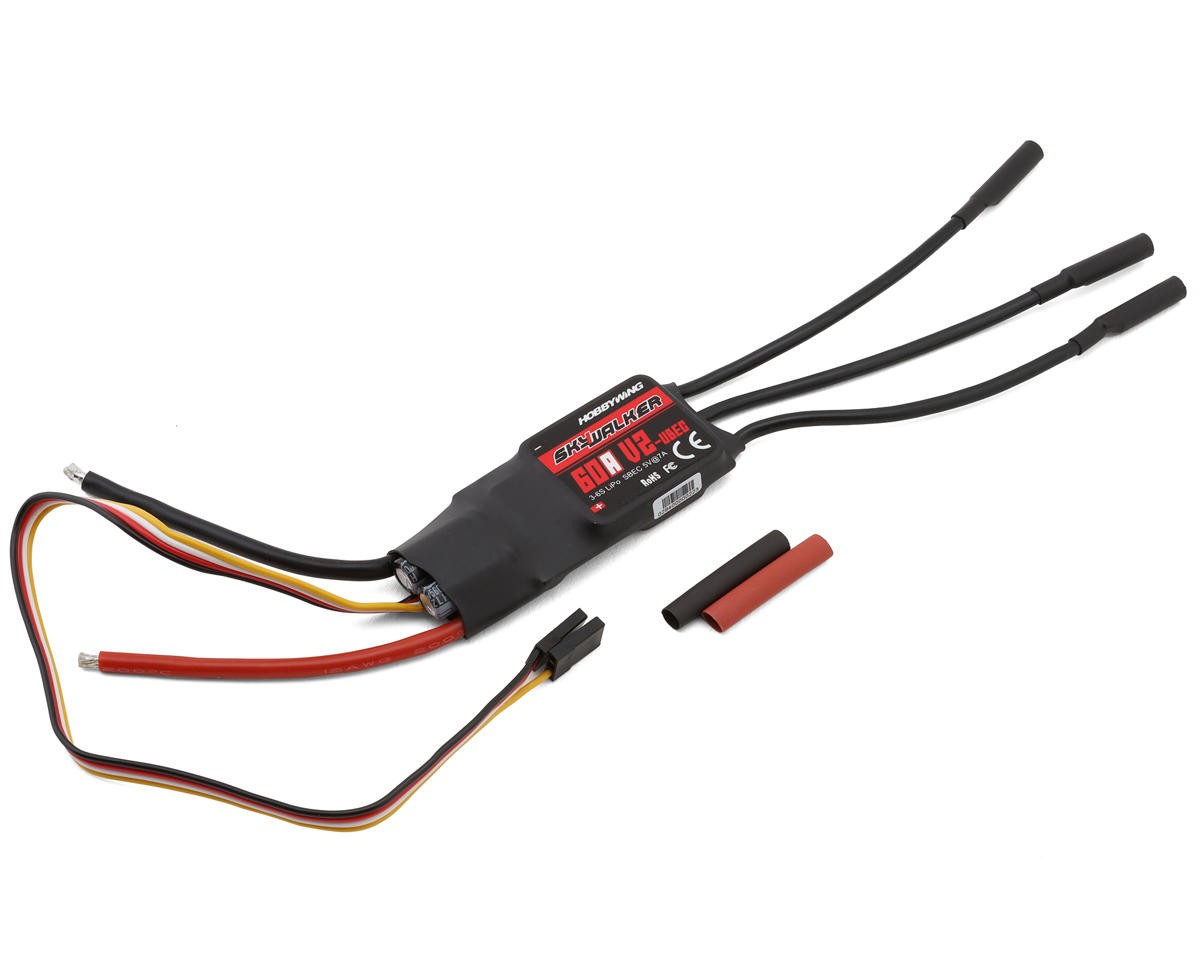

60 Amp

• Constant Current: 60A
• Burst Current (>10s): 80A
• BEC Mode: switch mode
• BEC Output: 5V at 3A
• Input Connectors: NO
• Output Connectors: NO
• Battery Cell: 2-6 cells Lipo,or 5-18 cells NiHH
• Refresh Rate: 50Hz-432Hz
• Dimension: 77 x 35 x 14 mm
• Weight: 63g
• Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor)

80 Amp

• Item Name: 80A UBEC
• Type: Brushless ESC,Regular voltage
• Cont./Peak Current: 80A/100A
• Input: 2-6S LiPo,5-18s Ni-MH
• BEC Output: Switch Mode--5V,5A
• Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1
• Output Wires: Black-14AWG-100mm*3
• Input Connectors: NO
• Output Connectors: NO
• ESC Programing via: Transmitter, LED Program Card, Program Port (Program/Throttle Wire)
• Firmware Upgrade: Not Supported
• Size: 86.0x38.0x12.0mm
• Weight: 82g

Features

 Safety Arming Feature

Regardless of the throttle stick position, the motor will not spin when Battery is first connected.
Throttle Calibration
Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
Programmable Items
Brake Setting: brake enabled / brake disabled.Battery Type: Li-xx (Li-ion or LiPo) / Ni-xx (NiMH or NiCd).Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.Start Mode: normal / soft / very soft.Timing: low / medium / high.Lipo Battery Cells: Auto calculate / Set the cells number manually.Reset: the programmable items to its default setting.



Full Protection Features

 Low voltage cutoff protection

Over-heat protection

Throttle signal lost protection
